Aiwa AD-M800

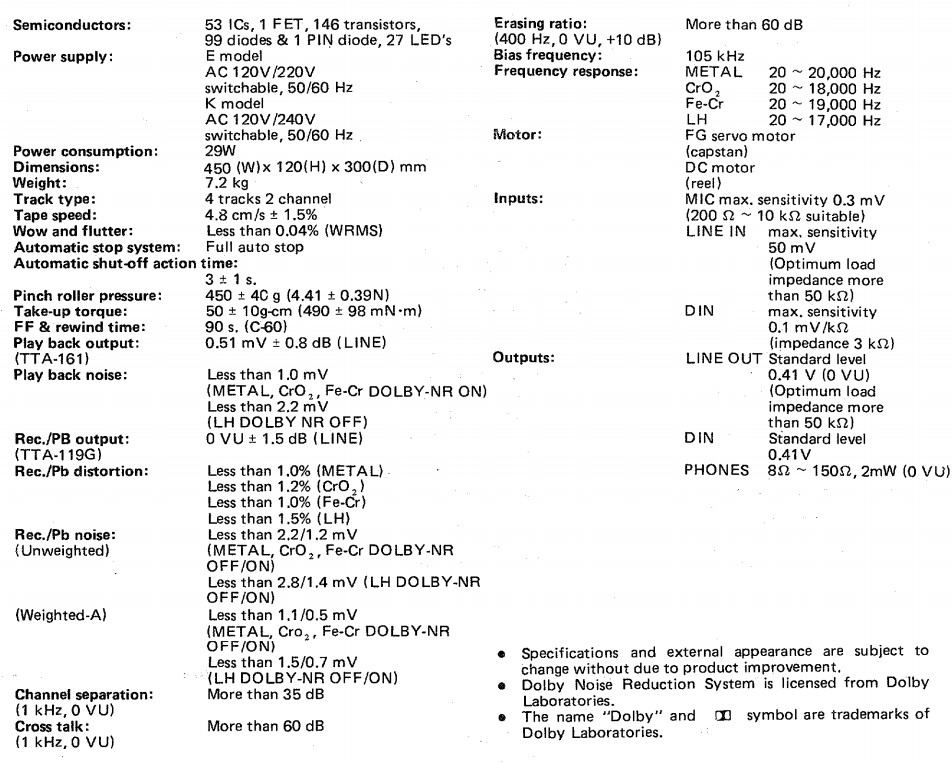

Dane techniczne:

Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x capstan, 1 x reel
Tape Type: type I, FeCr, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 20kHz  (Metal tape)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 1.5%
Input: 50mV (line), 0.3mV (mic)
Output: 0.41V (line)
Semiconductors: 53 x IC, 1 x FET, 143 x transistors, 98 x diodes, 27 x LED
Dimensions: 450 x 120 x 300mm
Weight: 7.2kg
Year: 1980



Chyba niekwestionowany "król" w kategorii na największa ilość zastosowanych układów scalonych zastosowanych w magnetofonie kasetowym: 53 sztuki. Imponująca liczba.

DSCF0913.JPG.316ea34ddd3e5427d6b7d05957c24f4b.JPG  DSCF0914.JPG.40ab00d9f72d7c1049ce02d2b975cc33.JPG  DSCF0915.JPG.248afa505b8641941baee9b9e1be5398.JPG  DSCF0909.JPG.025f0d1b35a4b18eb4d7f938ff6aa304.JPG  DSCF0908.JPG.a6b333066cd024d4fd2aacf6ffbd2de1.JPG

  • +1 2
Link to comment
Share on other sites

Piękna maszyna Andrzeju, Artur ma chyba tego samego tylko sprawnego inaczej ;) . Swoją droga to chyba pierwsza AIWA z auto-kalibracją. I dlatego taka ilość scalaków.
