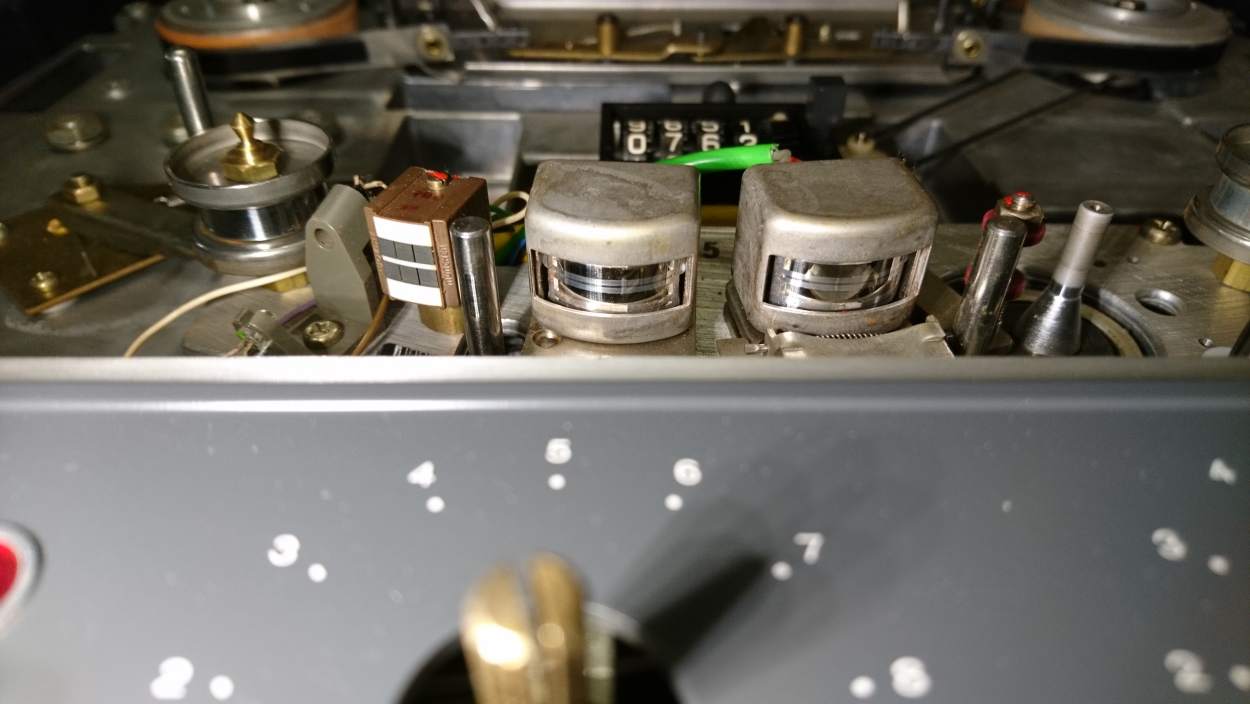

kefas Posted October 16, 2018 Share Posted October 16, 2018 Revox B77 Specifications Track system: stereo system Motor: 2 x reel, 1 x capstan Reel size: up to 10.5 inch reel Tape speeds: 3 3⁄4 7 1⁄2 ips Wow and flutter: 0.08% (7 1⁄2 ips) Frequency response: 30Hz to 20kHz (7 1⁄2 ips) Signal to Noise Ratio: 67dB Total harmonic distortion: 0.5% Input: 40mV (line), 0.15mV (mic) Output: 1.55V (line) Semiconductors: 11 x IC, 1 x opto-coupler, 4 x triacs, 60 x transistors, 33 x diodes, 5 x LED, 2 x full wave rectifi Dimensions: 563 x 475.5 x 233mm Weight: 17kg 1 2 Link to comment Share on other sites More sharing options...
Admin sherlock Posted October 16, 2018 Admin Share Posted October 16, 2018 Kawał porządnej maszyny. Spełniłeś swoje marzenie podobnie jak @Miron Teraz tylko czekamy aż Zdzisław pochwali się szpulakiem Link to comment Share on other sites More sharing options...
Recommended Posts
Posted by ke_raj,
instrukcja serwisowa i schemat
