Sony TCD-D8
Portable DAT Recorder
(1995-2000)


 Damen Fotografie https://www.flickr.com/photos/damenfotografie/14771084950

Specifications

* Tape: Digital audio tape
* Recording time: Long-play: 240 minutes (with DT-120)
* Recording time: Standard: 120 minutes
* Sampling Frequency: 48kHz, 44.1kHz, 32kHz
* Standard: Fs 48 kHz 20-22,000 Hz (+ or - 1.0dB)
* Standard: Fs 44.1 kHz 20-20,000 Hz (+ or - 1.0dB)
* Long-play Mode: Fs 32 kHz 20-14.500 Hz (+ or - 1.0dB)
* Standard: More than 87 dB
* Long-play Mode: More than 87 dB (1 kHz IHF-A, 22kHz LPF, LINE IN)
* Standard: Less than 0.008% (1 kHz IHF-A, 22kHz LPF, LINE IN)
* Long-play: Less than 0.09% (1 kHz IHF-A, 22kHz LPF, LINE IN)
* Wow And Flutter: Below measurable limit (less than + or - 0.001% W.PEAK)
* Impedance: 4.7 Kohms
* Minimum Input Level: 0.4mV
* Rated Input Level: 500 mV
* Minimum Input Level: 80 mV
* Audio: Stereo minijack
* Impedance: 27 ohms
* Rated Output: LINE OUT 500 mV
* Maximum Output: PHONES 5 mW + 5 mW
* Load Impedance: PHONES 32 ohms
* Load Impedance: LINE OUT more than 10 Kohms
* Digital I/O-REMOTE jack (special jack): Digital input/output, remote control operation and timer-activated operation is possible
* Power Requirements: The car battery cord DCC-E160L(not inc.) for use with 12V car battery of DCC-E260HG (not inc.)I

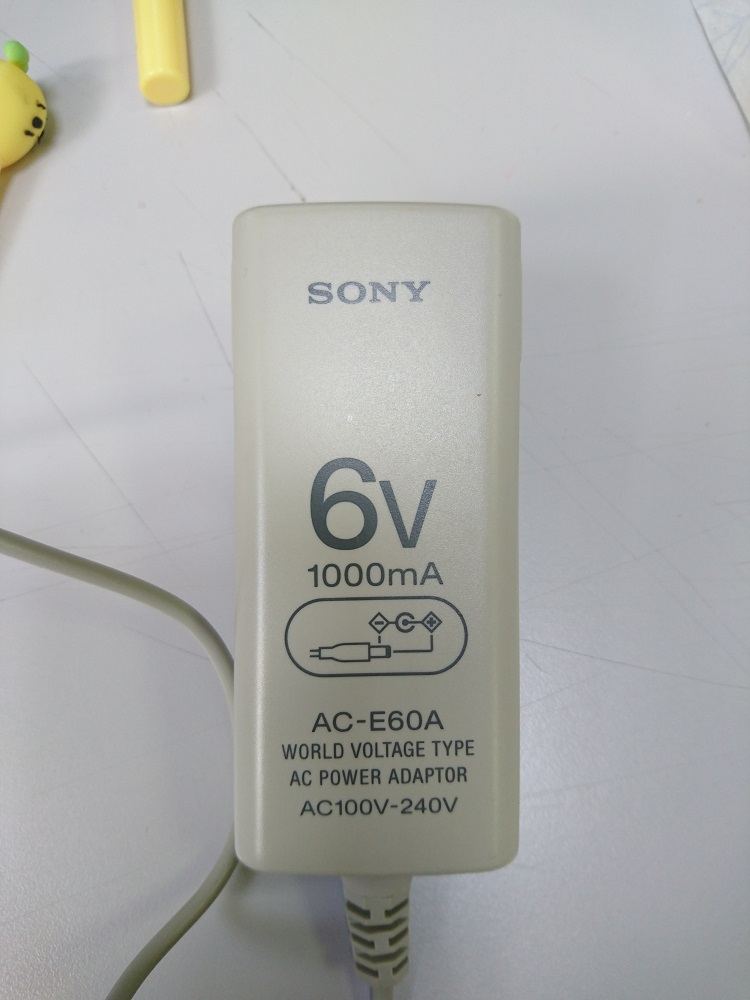

* Power Requirements: DC IN 6V jack accepts the Sony AC power adaptor for use on 240v AC, 50 Hz
* Power Requirements: DC 6V four LR6 (size AA) batteries
* Power Consumption: 1.2W
* Dimensions: Approx. 132.6 x 36.7 x 88.2mm (5.25 x 1.5 x 3.5in.)(w/h/d) not incl. projection parts and controls
* Mass: Approx. 500g (1lb. 1oz.) incl. batteries





"Przenośny" - jedynie pol kilogramowy odtwarzacz DAT ?


P70430-212722[1] (1).jpg P70501-092315[1] (1).jpg

  • Super (+1 pts) 1
  • +1 4
