G.Moderator justified Posted July 28, 2019 G.Moderator Share Posted July 28, 2019 Technics SH-8046 Specifications Input Sensitivity: 1V Output Level: 1V (8V max) Gain: ± 0dB Frequency response: 10Hz to 50kHz Signal to Noise Ratio: 107dB Total harmonic distortion: 0.003% Control Range: ± 12dB Frequency Bands: 63, 160, 400, 1K, 2.5K, 6.3K, 16KHz Dimensions: 430 x 97 x 230mm Weight: 3kg Ładny. Pełni rolę analizatora widma. Jak na sprzęt rodem z lat 80, bardzo nowatorski. Posiada dotykowy panel do ustawiania parametrów korektora. Potrafi zapamiętać 4 ustawienia korekcji. 2 Link to comment Share on other sites More sharing options...

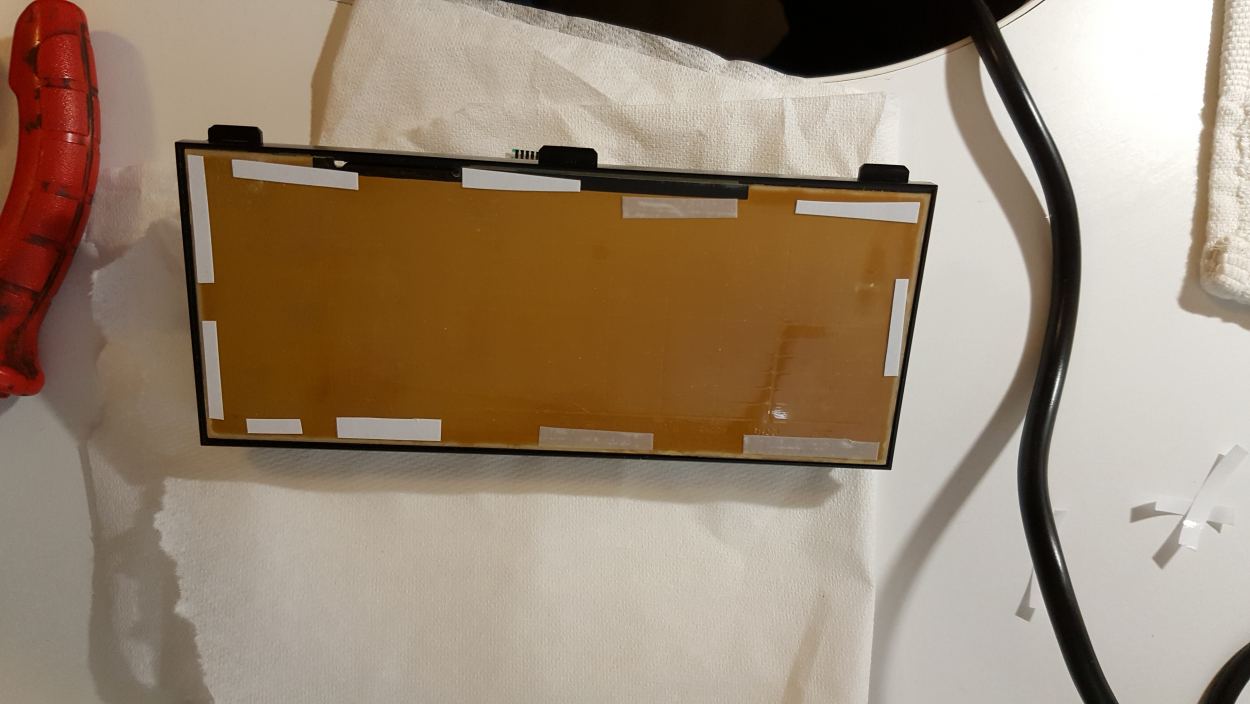

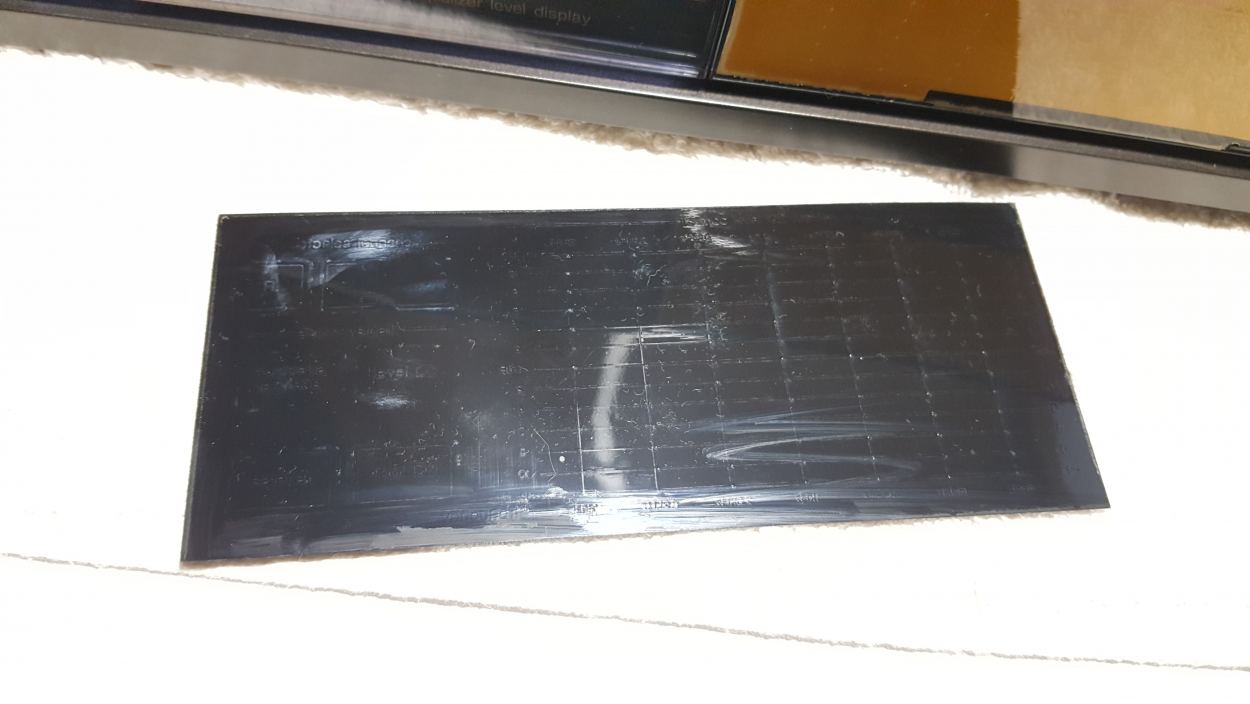

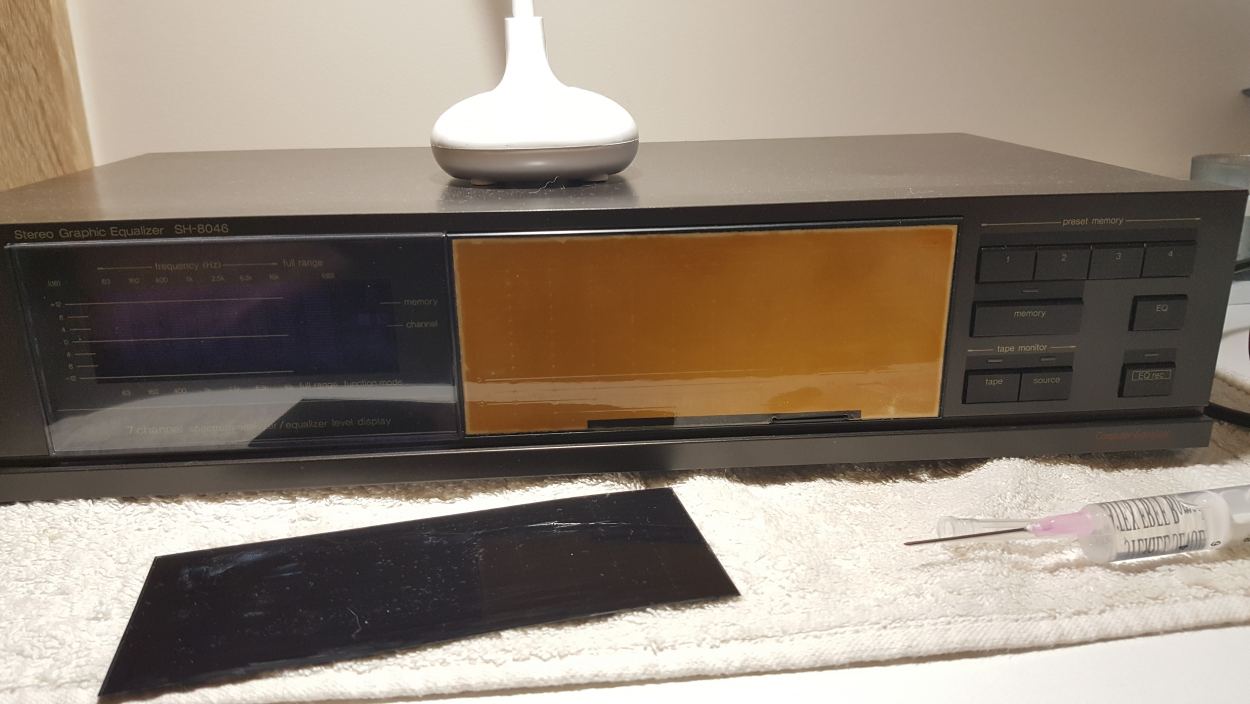

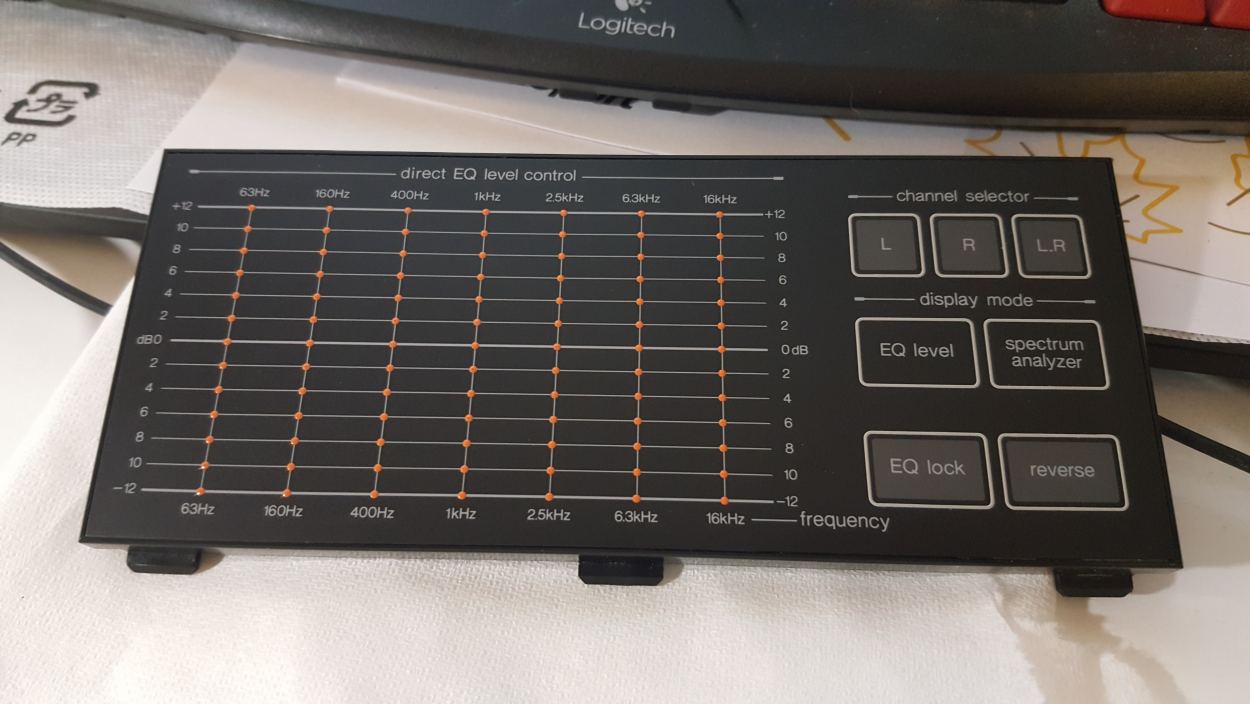

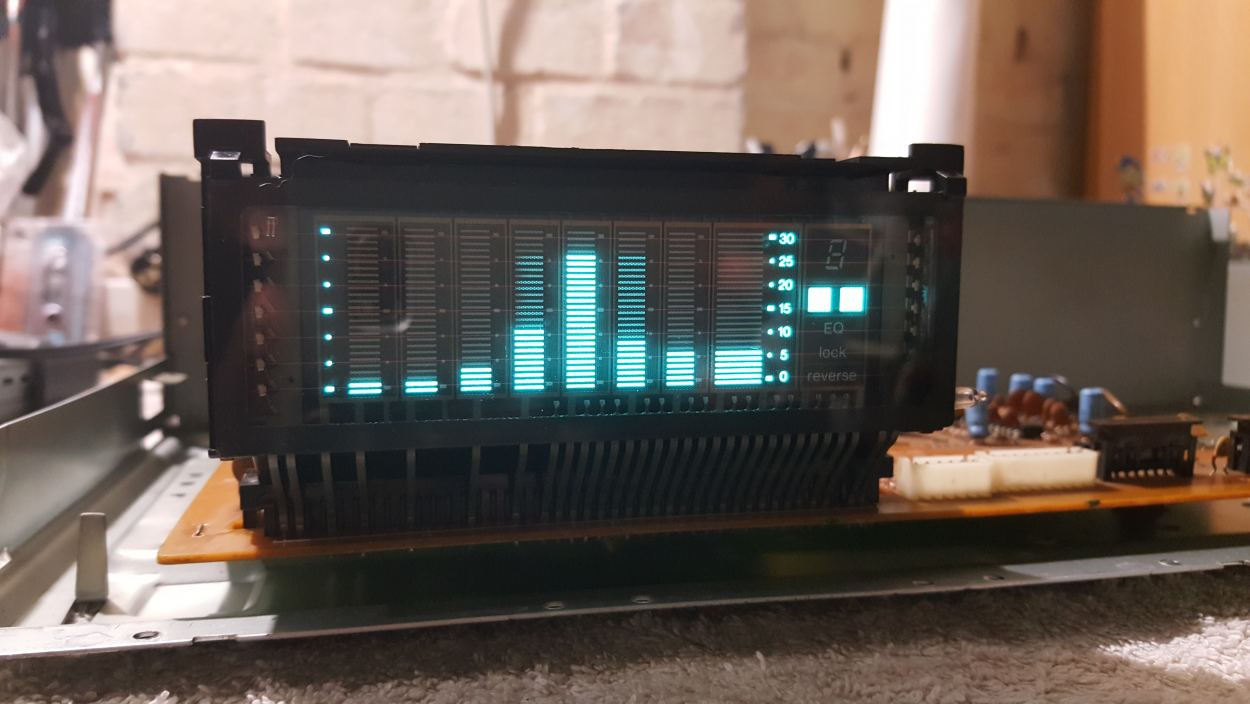

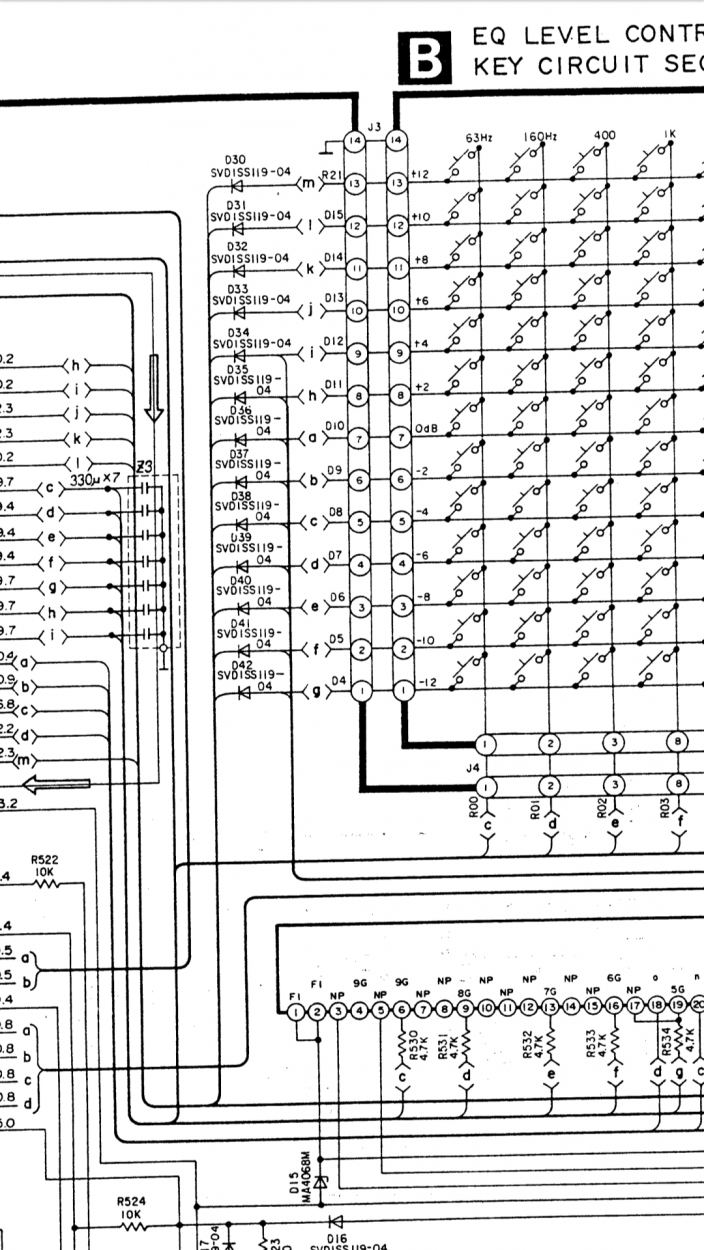

G.Moderator justified Posted July 28, 2019 Author G.Moderator Share Posted July 28, 2019 Mój egzemplarz ma nastepujący defekt: Jeśli chcesz zobaczyć zdjęcie, zaloguj się lub zarejestruj nowe konto Jak widać, po lewej i prawej od słupka 2.5kHz mamy "cień". Wymieniałem wyświetlacz i konsensatory Z3. Jeśli chcesz zobaczyć zdjęcie, zaloguj się lub zarejestruj nowe konto Bez zmian. Segmenty wyswietlacza połączone są z układem sterujacym ale nie mam pomysłu jak pomierzyć poprawność napięć. Stan zerowy wyświetlacza to napiecia około -32V na wyjściach sterownika i tak jest. Po podaniu, na wejscie korektora, sygnału 2.5kHz napięcie na wyjsciu sterownika i wejsciu segmentu G5 (slupek 2.5kHz) nadal jest -32V (stan z fotki). Jakieś pomysły? Link to comment Share on other sites More sharing options...
Recommended Posts
Posted by justified,
Jeśli chcesz zobaczyć zdjęcie, zaloguj się lub zarejestruj nowe konto
instrukcja serwisowa
Recommended by sherlock
2 reactions
Go to this post
Posted by Artakrobat,
Jeśli chcesz zobaczyć zdjęcie, zaloguj się lub zarejestruj nowe konto
instrukcja użytkownika
Recommended by sherlock
2 reactions
Go to this post
