Sony TC-766-2

[flyingcircus]

Sony TC-766-2

Stereo Tape Deck  (1977-80)









Specifications:

Track system: 2-track, 2-channel, stereo/monaural system

Heads: 1 x playback, 1 x record, 1 x erase

Motor: 1 x capstan, 2 x reel

Reel size: up to 10.5 inch reel

Tape speeds: 7 ¹⁄₂  15 ips

Wow and flutter: 0.07% (15 ips)

Frequency response: 30Hz to 30kHz (15 ips)

Signal to Noise Ratio: 64dB

Total harmonic distortion: 0.5%

Input: 60mV (line), 0.2mV (mic)

Output: 0.775V (line)

Semiconductors: 2 x IC, 3 x FET, 103 x transistors, 86 x diodes

Dimensions: 445 x 525 x 235mm

Weight: 27kg

[flyingcircus]

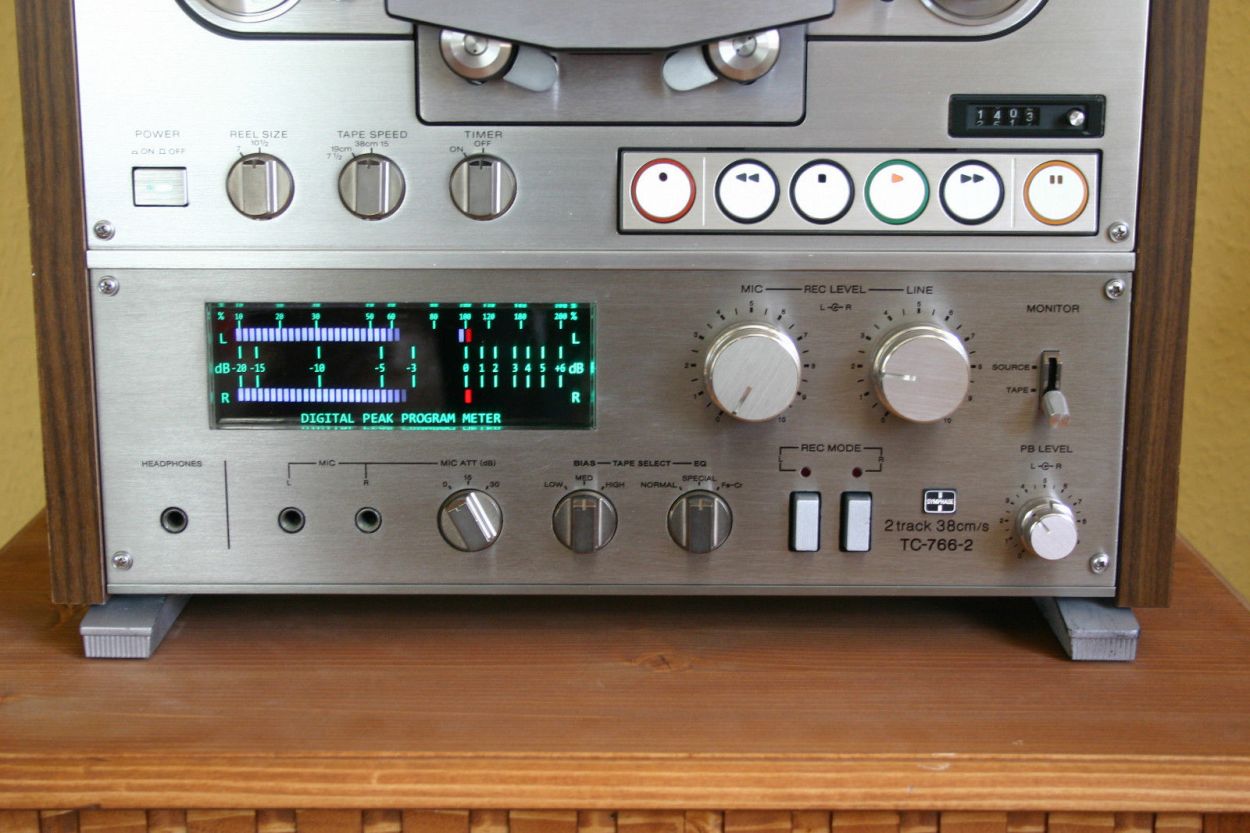

moje stare zdjecie z AH

[audiotone]

Wiesz że maszyna piękna bo to już kiedyś pisałem. Ale jak już będziesz miał sprawny aparat to wrzuć nowe foto
